Chain phaj Chip Conveyor



Chain phaj chip conveyor yog siv los txhawb thiab thauj cov khoom nrog cov khoom thauj -cov tswv cuab xws li cov phaj tiaj tus lossis cov slats hauv ntau qhov kev teeb tsa thiab cov txheej txheem txuas nrog cov saw hlau. Qhov ntev conveying tuaj yeem ncav cuag ntau dua 120 meters, thiab kev ua haujlwm ruaj khov thiab txhim khu kev qha. Nws feem ntau yog siv los thauj cov iav fwj, hlau yooj yim - mus rau - qhib cov kaus poom, ntau lub thawv yas, pob khoom, thiab tuaj yeem thauj cov khoom noj khoom haus thiab cov khoom siv tshuab. Tsis tas li ntawd, nws kuj tau siv dav hauv kev xa khoom tsis siv neeg, kev faib tawm, thiab hauv - kab xa khoom tom qab ntim khoom noj, cov kaus poom, dej haus, tshuaj pleev ib ce thiab ntxhua khaub ncaws, khoom siv ntawv, khoom noj khoom haus, khoom noj siv mis, thiab lwm yam.







1. Traction saw: siv lub phaj phaj hom pin roller saw, tom qab kev kho cua sov, nws muaj kev hnav zoo, siab tensile lub zog thiab kev pab lub neej ntev;

2. Chain phaj: Stamping zawj lub cev yog saws, cov khoom siv ruaj khov dua, thiab cov phaj hauv qab ntawm lub cev zawj yog overlapped los ntawm arc kom txo cov khoom to;

3. Tsav: Lub cev muaj zog tuaj yeem siv qhov ceev - tswj lub cev muaj zog, kev khiav ceev tuaj yeem hloov kho, thiab qhov nrawm nrawm lossis qeeb tuaj yeem tswj tau manually. Qhov ceev yog 0.3 ~ 0.5m / min, uas yog siv ntau dua thiab ua haujlwm ruaj khov, kom lub ntim ntim tuaj yeem xaiv tau ntau dua;

4. Layout daim ntawv: ntau yam, kab rov tav thiab inclined layout.

5. Conveying ntev: feem ntau 5-20 meters, customized raws li kev thov.

6. Lub kaum sab xis: lub slat conveyor feem ntau tsis ntau tshaj 20 degrees. Yog hais tias lub kaum sab xis yog qhov loj, cov saw thoob conveyor tuaj yeem xaiv tau.

7. Nws tuaj yeem thauj cov khoom kub, qhov kub tsis tshaj 1000 degree;





Qauv	IB 500		SIB 650		SIB BL800		IB 1000		SIB 1200
chain phaj dav (mm)	500		650		800		1000		1200
Ntev ntawm txhua lub saw (mm)	250		250		320		320		400
Qhov siab qhov siab (m / min)	120	180	120	180	160	240	160	240	200	330
Conveying peev (m³ / h)	5.6-23	7.5-30	8-32	10-40	13-52	17-68	17-68	22-88	26-104	33-132
Qhov loj tshaj ntawm cov khoom (mm)	200	200	200	260	280	340	280	340	380	460
Tail log adjustment (mm)	320		320		360		360		450



Teeb meem xav tau kev saib xyuas:

1. Cov khoom siv no feem ntau yog siv los thauj cov ntaub ntawv uas muaj zog hnav thiab kub siab.

2. Lub zog hluav taws xob tuaj yeem hloov pauv ntawm lub taub hau, sab laug thiab sab xis ntawm lub tshuab saw thoob.

3. Lub conveying ceev yuav tsum yog 8 ~ 10m / min, tsawg dhau yuav cuam tshuam rau lub peev xwm conveying, siab dhau yuav ua suab nrov, thiab hnav yuav nce.

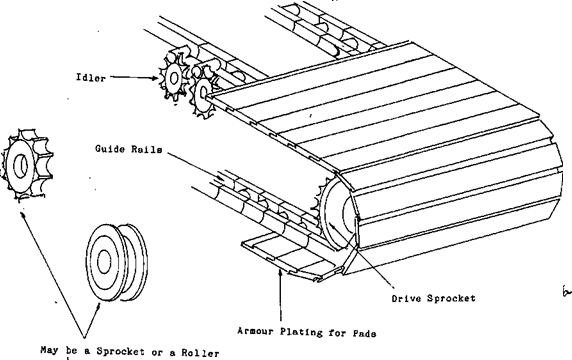

Chain phaj nti conveyor yog tsim los ntawm lub taub hau lub log, lub nplhaib phaj saw khoom, lub log log tensioning, cov khoom siv qhia kev tiv thaiv, ncej thiab tsav tsheb.

1. Tsav tsheb: Txij li qhov ceev ntawm Chain phaj nti conveyor feem ntau tsis ntau dua 0.5m / s, cov cuab yeej tsav tsheb ntawm Chain phaj nti conveyor feem ntau siv cov qauv sib kis xws li lub cev muaj zog thiab reducer, yog li nws tuaj yeem txuas ncaj qha nrog tus ntoo khaub lig slider coupling thiab Chain phaj nti conveyor. Kev sib txuas ntawm lub taub hau lub taub hau ua kom yooj yim rau cov qauv ntawm lub taub hau log, ua kom yooj yim rau kev tsim, nruab thiab kho, thiab tus nqi kuj tseem qis, thiab nws yog ib qho kev tsav tsheb nrog ib qho kev ceev.

2. Tail log tensioning ntaus ntawv: Cov cuab yeej siv lub tshuab tensioning, uas muaj lub log log ncej, ob tus Tsov tus tw sprockets, ib khub ntawm tensioning screws thiab lwm yam khoom siv. Lub tensioning sprocket (xws li lub hub) tau txais kev txhawb nqa ntawm lub taub hau sprocket los ntawm ob chav dov bearings, uas tuaj yeem txo cov coefficient thaum lub traction saw mus ncig lub sprocket. Txoj hauj lwm ntawm cov hniav sprocket thiab cov traction saw pob qij txha tuaj yeem hloov kho thaum cov hniav sprocket raug kho kom ntseeg tau qhov tseeb meshing ntawm cov hniav sprocket thiab cov saw hlau. kev ua tau zoo.

3. Plate chain device: Cov saw siv nyob rau hauv BL Chain phaj nti conveyor yog ib daim saw hlau thiab cov saw hlau stamping nrog cov chais ntsia rau ntawm qhov kawg. Cov rollers yog ntsia rau sab nraud ntawm cov saw hlau sab nraud. Cov rollers tsuas yog txhawb nqa lub nra ntawm lub phaj hauv qab, thiab lawv cov qauv qhov ntev yog sib npaug me dua. , yog li tus cab coefficient me dua, txo cov tsav tsheb thiab traction loads. Tom qab quenching thiab tempering kub kho, cov saw muaj peev xwm loj thiab muaj zog tensile zog; Cov saw phaj sib koom tes tes tsho yog ua los ntawm cov hlau alloy, carburized, quenched, hauv av, thiab muaj kev hnav tsis kam; scale phaj hopper: lub nplai phaj hopper yog cov kabmob ntawm Chain phaj nti conveyor. Cov khoom yog stamped thiab tsim nrog tuab steel daim hlau, nrog rau cov duab siab thiab qhov tseeb qhov tseeb, me me yuam kev, thiab cov nplai yuav tsis sib txawv thaum taug kev.

4. Rack: Cov khib nyiab tau txais cov qauv tsim, uas tsis yog tsuas yog tsim cov txheej txheem tsim khoom, tab sis kuj zam kev ua yuam kev los ntawm phau ntawv yuam kev, txhim kho tus nqi ntawm cov khoom zoo, txuag nqi, thiab txhim kho cov txiaj ntsig kev lag luam.





Lub tshuab no tuaj yeem teem caij horizontally thiab vertically inclined (inclined lub kaum sab xis Tsawg dua lossis sib npaug li 60 degree), haum rau kev xa tawm ntau yam hmoov thiab cov khoom loj, xws li cov cement clinker, unloading coke, hlau slag, ore, limestone thiab lwm yam siab -cov ntaub ntawv kub tsawg dua lossis sib npaug li 10. Kev kub siab ua haujlwm, hnav tsis kam, tuaj yeem thauj cov ntaub ntawv ntau thiab lwm yam ntxwv zoo dua li lwm cov khoom siv. Lub conveying ntev ntawm ib lub tshuab tuaj yeem ncav cuag ntau dua 150 meters, thiab chav tsev qhov hnyav ntawm qhov ntev -cov ntaub ntawv thauj khoom deb tuaj yeem ncav cuag 2000kg / m³. Feem ntau siv hauv metallurgy, steel, coking, tsev cov ntaub ntawv, tshuaj thiab lwm yam lag luam.





Xws li: boiler tshauv, cement clinker, slag, coke, crushed pob zeb, thiab lwm yam., tshwj xeeb tshaj yog ib co ntaub ntawv uas muaj kub, loj bulk, loj thaiv, ntse lub kaum ntse ntse thiab muaj zog sib tsoo.







1. Qhov sib sib zog nqus Chain phaj nti conveyor txiav txim siab nws tus kheej cov xwm txheej ntau lawm. Kev siv cov slat conveyors hauv kev lag luam sib txawv yog txawv. Rau cov lag luam hluav taws xob loj xws li tsheb thiab khoom siv hauv tsev, hnyav- lub luag haujlwm Chain phaj chip conveyors yuav tsum raug xaiv, thiab kev lag luam xws li zaub mov thiab khoom siv hluav taws xob yuav tsum xaiv lub teeb sawb conveyors.

2. Qhov sib sib zog nqus Chain phaj nti conveyor txiav txim siab cov khoom siv conveying. Cov saw hlau ntawm Chain phaj nti conveyor yog ua los ntawm polypropylene, polyethylene, acetal, nylon, stainless hlau, thiab lwm yam .; thav duab ntawm Chain phaj nti conveyor yog tsim los ntawm stainless hlau, siab -lub zog aluminium alloy, carbon steel phaj dabtsi yog khoov, carbon steel channel, thiab lwm yam, raws li xaiv cov ntaub ntawv tsim nyog rau cov yam ntxwv ntawm cov khoom koj thauj.

3. Qhov sib sib zog nqus Chain phaj nti conveyor txiav txim siab qhov kev coj ua. Raws li qhov sib txawv conveying cov lus qhia, Chain phaj nti conveyor yog muab faib ua linear phosphorus phaj conveyor kab, nce phosphorus phaj conveyor, tig Chain phaj nti conveyor, ntsug phosphorus phaj conveyor, nkhaus phosphorus phaj conveyor, accumulating phosphorus phaj conveyor, thiab lwm yam . . Xaiv qhov chaw conveying yam ntxwv

4. Txiav txim siab qhov tseem ceeb ntawm cov . Qhov dav, qhov siab, qhov sib nrug, qhov ntev, kev thauj khoom ceev thiab nqa lub peev xwm ntawm cov khoom siv conveyor tuaj yeem tsim raws li qhov xav tau ntawm cov neeg tsim khoom.



Hom ntawm apron conveyors:

Heavy Apron Conveyor:haum rau kev thauj mus los luv luv ntawm cov ntaub ntawv thaiv nrog pub me me hauv qab 1000mm.

Medium apron conveyor:haum rau luv luv -kev ncua deb ntawm cov khoom thaiv nrog kev pub me me me dua 400mm, thauj cov ntaub ntawv nrog xoob ntom tsawg dua 2400kg / m³, thaiv qhov hnyav tsawg dua 500kg thiab kub tsawg dua 400℃.

Lub teeb apron conveyor:haum rau luv luv -kev ncua deb ntawm cov ntaub ntawv thaiv nrog pub me me me dua 160mm, thauj cov ntaub ntawv nrog xoob ntom tsawg dua 1200kg / m³, thaiv qhov hnyav tsawg dua 140kg thiab kub tsawg dua 350℃.









(1) Kev dav dav ntawm cov nplai conveyor: b=650mm, 800mm, 1000mm, 1200mm, 1500mm, 2000mm; Ntawm lawv, b=800mm, 1000mm thiab 1500mm yog dav siv;

(2) Qhov hnyav ntawm ib qho khoom thauj: feem ntau 75kg, * txog 120-150kg;

(3) Conveyor ntev: feem ntau 60-120m, * mus txog 200m;

(4) Conveyor Express Series: v=0.8, 0.96, 1.2, 1.5, 1.8, 2.4, 3.0m / min;

(5) Lifting qhov siab ntawm conveyor: h=2.2-4.5m, * mus txog 10m;

(6) Rau ntau yam ntaub ntawv, qhov tso cai inclination lub kaum sab xis ntawm lub conveyor yog 25 degrees;

(7) Thaum lub conveyor raug ntsia rau ntawm qhov chaw cob qhia hauv av lossis qhib hauv av, qhov siab ntawm qhov siab ntawm chord sab saum toj ntawm lub phaj rov qab rau hauv av yuav tsum tsis pub tsawg tshaj 200 hli; Thaum muab tso rau hauv lub qhov, qhov siab qhov siab yuav tsum tsis pub tsawg tshaj 300mm. Raws li qee qhov xwm txheej thiab txwv los ntawm qee yam kev mob sab nraud, qhov siab tshem tawm tuaj yeem txiav txim siab raws li qhov xav tau.













1. Tsis tu ncua xyuas seb qhov sib kis ntawm Chain phaj nti conveyor puas hnav los yog tsis. Yog tias muaj qhov txawv txav, thov hloov lub sijhawm.

2. Xyuas seb qhov txuas bolts ntawm cov saw hlau ntawm Chain phaj nti conveyor yog nruj. Yog tias lawv xoob, lawv yuav tsum tau nruj rau lub sijhawm.

3. Tshawb xyuas qhov nro ntawm kev sib kis ntawm Chain phaj nti conveyor. Kev xoob dhau thiab nruj dhau yuav yooj yim ua rau cov kabmob hnav.

4. Tsis tu ncua xyuas seb cov roj lubricating ntawm cov saw conveyor reducer xav tau ntxiv.

5. Yuav tsum tsis muaj teeb meem txawv teb chaws nyob rau hauv Chain phaj nti conveyor, uas yuav yooj yim ua rau saw jams, thiab lwm yam, thiab yuav tsum tau muab ntxuav kom raws sij hawm.

6. nquag pib, overload startup thiab puv -load startup raug txwv.





Lubrication point qhov chaw	Lub npe roj	Lubrication voj voog
Lub taub hau thiab Tail ncej bearings	ZG-3 calcium puag roj	ib hlis ib zaug
Ntsia hlau tensioner guide rail	Ntsia Hlau ZG-3 calcium puag roj	ib hlis ib zaug
Lub tes tsho Roller Chain	ZG-3 calcium puag roj	ib zaug txhua 10 hnub
hluav taws xob lub cev muaj zog	Saib xyuas raws li cov neeg tsim khoom cov lus qhia
Drag chain rollers	ZG-3 calcium puag roj	ib zaug txhua 15 hnub





Tej Yam Ua Tsis Taus	Qhov Tseem Ceeb	Txoj kev tshem tawm
Lub cev muaj zog load yog loj heev	Loj thaiv daig, lub coupling tsis concentric	Txo tus nqi pub mis, ntxuav cov khoom loj, kho cov coaxiality
Conveyor saw deviation	Lub taub hau thiab tus Tsov tus tw sprockets tsis yog sib npaug	Kho cov ntsia hlau ntawm tus Tsov tus tw
Mesh tsis ua hauj lwm ntawm gears	pinion hnav	Hloov cov iav tsav
Cov kabmob kub siab dhau lawm	Tsis muaj lubricating roj, av nyob rau hauv cov roj, hloov tsis raug, bearing nruj, thiab lwm yam.	1. Refuel thiab ntxuav cov kabmob 2. Kev kho lossis kho





Ua ntej-Kev Muag Khoom:

• Qhia cov neeg siv khoom xaiv cov qauv tsim nyog.
• Xa cov neeg ua haujlwm engineering thiab cov kws tshaj lij mus rau qhov chaw tsim khoom hauv lub sijhawm los npaj lub xaib rau cov neeg siv khoom, tsim cov txheej txheem tsim nyog thiab kev daws teeb meem.
• Peb tuaj yeem tsim thiab tsim cov khoom raws li cov kev xav tau tshwj xeeb ntawm cov neeg siv khoom kom tau raws li cov kev xav tau sib txawv ntawm cov tub ua lag luam



Ntawm Kev Muag Khoom:

• Kev soj ntsuam nruj ntawm cov khoom ua ntej tawm hauv lub hoobkas
• Nkoj raws li daim ntawv cog lus



Tom qab-muag Service:

• Lub sijhawm lav tseem ceeb ntawm cov khoom muag los ntawm peb lub tuam txhab yog ib xyoos (tshwj tsis yog qhov tsis ua haujlwm lossis kev puas tsuaj los ntawm tib neeg cov yam ntxwv, roj yam tseem ceeb lossis qhov tshwm sim tsis zoo, thiab qhov tsis zoo yuav tsis them los ntawm lub warranty: roj injectors, twj tso kua mis, lub qhov muag photosensitive, thiab lwm yam).
• Yog tias cov khoom siv tsis ua haujlwm yog tshwm sim los ntawm tib neeg yam, tus nqi yuav raug them raws li lub Hoobkas nqi.
• Tom qab tau txais daim ntawv ceeb toom lav, teb tsis pub dhau 2 teev . 24 teev cov kev taw qhia kev daws teeb meem.







Zhengzhou Odifei Machinery Equipment Co., Ltd. tau tsom mus rau cov khoom siv conveying rau 17 xyoo. Nws lub lag luam tseem ceeb yog: kauv vibration ntsug elevator, slat feeder, Chain phaj nti conveyor, slat conveyor, Chain phaj nti conveyor, lub kaum sab xis loj Chain phaj nti conveyor, ntsia hlau conveyor Conveyor, saw thoob conveyor, TD siv thoob of elevator, TH nplhaib saw thoob elevator SEEV, thiab lwm yam ntau yam ntawm cov thoob elevator. TD75 Chain phaj nti conveyor (los yog Chain phaj nti conveyor), txawb conveyor, Chain phaj nti conveyor nrog loj inclination lub kaum sab xis; ntsia hlau conveyor, shaftless ntsia hlau conveyor; Lub teeb, nruab nrab thiab hnyav Chain phaj nti conveyor; saw thoob conveyor tshuab, SCD trough clinker conveyor; kab rov tav ob chav ncej tov khoom; lub teeb, nruab nrab thiab hnyav phaj feeder; GZG lub cev muaj zog vibration feeder; trommel screen, shaftless trommel npo;

Xyoo 2010, peb lub tuam txhab R & D pab neeg tau nkag mus rau hauv kev lag luam kev lag luam, thiab tau tsim kho cov khoom pov tseg hauv tsev kho mob scaly conveyors, kev tshuaj xyuas cov khib nyiab hauv tsev thiab txheeb xyuas cov ntxaij vab tshaus trommel, kev tsim cov khib nyiab slat feeders, thiab hluav taws xob arc rauv scaly scrap conveyors, uas tsis tsuas yog tsim Nws kuj tsim lub hom phiaj ntawm kev lag luam thiab ib puag ncig cov txiaj ntsig. saw hlau.

Zhengzhou Odifei Machinery Equipment Co., Ltd. tau ua tsis tu ncua kev siv technology tshiab nyob rau hauv tus ntsuj plig ntawm kev ua tau zoo, thiab tau tsim ntau yam khoom siv tshiab. Cov khoom lag luam yog qib siab hauv kev tsim, nplua hauv kev tsim khoom, txhim khu kev qha hauv kev ua tau zoo, muaj qib siab thoob ntiaj teb, muag zoo hauv tsev thiab txawv teb chaws, thiab lub hom phiaj ua tus thawj coj hauv kev lag luam!





Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?

A: Peb yog ib lub Hoobkas, tsim nyob rau hauv 2007, tshwj xeeb hauv kev tsim cov kauv vibration ntsug elevator, slat feeder, Chain phaj nti conveyor, slat conveyor, Chain phaj nti conveyor, lub kaum sab xis loj Chain phaj nti conveyor, ntsia hlau conveyor Conveyor, saw thoob conveyor, TD siv thoob elevator, thiab



Q: Yuav ua li cas txog cov khoom seem?

A: Peb ib txwm muab cov khoom seem ntawm tus nqi thiab muab cov npe ntawm cov khoom seem rau koj thaum koj yuav lub tshuab.



Q: Koj puas yuav kuaj lub tshuab ua ntej xa khoom?

A: Yog lawm, peb yuav sim txhua lub tshuab thiab cov kab ntau lawm ua ntej xa khoom, thiab xa cov yeeb yaj kiab ua haujlwm rau koj. Koj tuaj yeem tshawb xyuas nrog peb ua ntej xa khoom.



Q: Qhov no Chain phaj nti conveyor puas tuaj yeem tiv taus kub?

A: Yog, cov ntaub ntawv uas muaj qhov kub thiab txias tsawg dua 1000 degrees tuaj yeem thauj tau. Thov hu rau tus neeg siv khoom los piav qhia cov yam ntxwv ntawm cov khoom siv, ntim ntim thiab conveying ntev, thiab lwm yam. Ua tsaug.



Q: Puas yog Chain Phaj nti conveyor siv tau rau hauv cov hlau casting?

A: Yog, Chain phaj nti conveyor yog cov cuab yeej zoo tshaj plaws rau kev xa cov khoom ntse, kub, loj thiab corrosive hauv kev lag luam xws li hlau thiab hlau, mining, cov khoom siv hauv tsev, metallurgy, thee, tshuaj lom neeg kev lag luam, thiab lwm yam.



Q: Plate saw conveyor puas tuaj yeem kho tau?

A: Yog lawm, peb yog cov chaw tsim khoom thiab txais kev tsim kho.











1. Thov muab cov khoom npe, lub ntiajteb txawj nqus, qhov loj me, thiab lwm yam

2. Puas muaj lwm yam yam ntxwv: xws li viscosity, kub, corrosivity, thiab lwm yam?

3. Conveying ntev, kab rov tav conveying lossis inclined conveying?

4. Kev xa khoom muaj peev xwm / teev



Yog tias koj txaus siab rau Chain phaj nti conveyor, thov koj xav tiv tauj peb hauv 24 teev!

Txais tos koj tuaj xyuas peb lub Hoobkas !!!
