Multi-point Discharge Z-type Bucket Of elevator





Z- hom of elevator feem ntau yog siv rau kev nqa thiab nqa khoom ntawm lub thawv khoom. Nws muab faib ua Z-hom thiab C- hom raws li kev taw qhia ntawm qhov nkag thiab qhov hluav taws xob. Cov hoppers ntawm lub thoob elevator muaj xws li stainless hlau hopper, carbon steel hopper thiab zaub mov qib yas hopper. Cov tsav tsheb suav nrog kev tawg- pov thawj reducer thiab cov reducer zoo tib yam, thiab cov sprocket suav nrog alloy steel sprocket - stainless hlau sprocket. Cov saw muaj xws li alloy steel saw - stainless hlau saw. Control: phau ntawv tswj, tsis siv neeg nres tswj thiab zaus conversion tswj.



Dab tsi yog qhov txawv ntawmMulti-point tso tawm Z- hom thoob of elevatorthiab lwm yam khoom siv conveying?

Universal conveyors muaj xws li siv conveyors, ntsia hlau conveyors, thiab lwm yam., uas feem ntau yog kab rov tav. Z- hom thoob of elevator yog ib qho khoom siv dav siv tawm. Hauv qhov sib piv, Z- hom thoob of elevator tuaj yeem thauj cov khoom hauv txoj kab ncaj nraim, ua kom luv txoj kab xaim ntawm qhov nqa qhov siab, ua kom lub cev sib zog, thiab Z- hom thoob of elevator muaj kev sib khi zoo. Kev ua haujlwm sab hauv tsev muaj kev sib khi zoo dua qub, uas tuaj yeem txo cov pa phem ib puag ncig.





1. Ntau yam kev txhim kho. Lub thoob of elevator muaj qhov xav tau tsawg dua ntawm hom, yam ntxwv thiab lumpiness ntawm cov ntaub ntawv. Nws tuaj yeem tsis tsuas yog txhim kho powdery, granular thiab loj cov ntaub ntawv, tab sis kuj txhim kho cov ntaub ntawv nrog siab sib tsoo thiab chipping. Khoom siv thiab kub tsawg dua los yog sib npaug li 250℃.

2. Loj conveying muaj peev xwm. Lub thoob of elevator ntawm no series muaj ntau tshaj z15-z800 specifications. Lub peev xwm nqa tau yog 10-800m³ / h.

3. Tsawg tsav tsheb siv zog. Hom of the elevator no siv cov khoom noj khoom haus thiab lub ntiajteb txawj nqus induced unloading, thiab txais yuav tuab loj - muaj peev xwm hopper tsheb thauj mus los, nrog nruab nrab saw ceev thiab loj lifting muaj peev xwm. Thaum cov khoom raug tshem tawm, yuav luag tsis muaj cov khoom xa rov qab, yog li kev tsav tsheb siv hluav taws xob tsawg, thiab qhov theoretically xam lub zog ncej yog 25% - 35% tsawg dua li ntawm lub nplhaib saw hoist.

4. Lub neej ua haujlwm ntev. Kev pub mis ntawm of the elevator adopts inflow type, thiab muaj me ntsis extrusion thiab kev sib tsoo ntawm cov ntaub ntawv. Kev tsim ntawm lub tshuab ua kom ntseeg tau tias cov ntaub ntawv yuav tsis raug tshem tawm thaum pub mis, nqa thiab tshem tawm, uas txo qhov hnav. Cov saw saw saw saw saw hom siab -lub zog hnav- cov saw hlau tiv taus, uas ua rau lub neej ntev ntawm cov saw hlau thiab cov thoob thoob. Raws li lub sijhawm ntev - kev coj ua ntawm cov khoom zoo sib xws hauv tsev thiab txawv teb chaws, kev pabcuam lub neej ntawm cov saw hlau conveyor yog ntev.





Z- hom hoist qauv	ZX-160	ZX-330	ZX-500	ZX-650
Kev xa tawm muaj peev xwm m³ / h	2.9-4.8	6.0-10.0	25.4-42.3	32.9-54.9
Qauv	ZX-250	ZX-400	ZX-530	ZX-800
Kev xa tawm muaj peev xwm m³ / h	4.6-15.7	15.2-25.2	20-33.4	40.6-67.6



Nco tseg:

1. Lub thoob ntim hauv lub rooj yog xam lub thoob ntim, thiab lub ntim ntim tau suav raws li qhov ntim ntawm 0.6.

2. Hopper: zaub mov qib ABS hopper / stainless hlau hopper / carbon steel hopper





Z series hoist yog tsim los ntawm qhov chaw khiav, tsav tsheb (slow rotation device), sab sauv, nruab nrab casing thiab qis dua.

Khiav qhov chaw ---- muaj hopper thiab lub tes tsho cov menyuam saw.

Tsav tsheb - txais yuav Y series lub cev muaj zog, reducer thiab saw tsav reducer, thiab lwm yam.

Slow-khiav ntaus ntawv- txais yuav lub cev muaj zog, txuas nrog lub reducer thiab cov saw tsav txo cov cuab yeej los ntawm lub clutch, feem ntau yog siv thaum kho cov cuab yeej siv, cov cuab yeej no yog tus neeg siv- cov khoom xaiv.



Lub Multi-point tso tawm Z- hom thoob of elevator tsav tsheb tau muab faib ua ob hom: sab laug-mounted thiab sab xis-mounted:

Sab laug- sab kev teeb tsa: tig mus rau qhov chaw noj mov, lub zog ntawm lub tshuab tsav yog nyob rau sab laug ntawm lub casing.

Txoj cai -mounted: tig mus rau qhov chaw noj mov, lub zog ntawm lub tshuab tsav yog nyob rau sab xis ntawm lub casing.

Cov khoom siv sab saud - nruab nrog sab sauv sprocket, lub ntsiab ncej thiab qhov chaw nres nkoj tawm.

Ntu nruab nrab - Ntu nruab nrab suav nrog: thawj ntu nruab nrab ntu, ntu nruab nrab tus qauv, ntu nruab nrab nrog lub qhov rooj tshuaj xyuas, thiab tsis yog- ntu nruab nrab.

Cov cuab yeej qis dua - ntsia nrog qis dua sprocket, ncej ncej thiab tensioning ntaus ntawv, thiab lwm yam. (khoom siv qib hloov, ceev hloov neeg siv- txhais).





Hopper:Yuav kom ua tau raws li qhov xav tau ntawm cov neeg siv khoom, muaj ntau yam ntaub ntawv xws li nylon, ABS, PP, stainless hlau 304, stainless hlau 316L, stainless hlau 310, carbon hlau, thiab lwm yam.

Chain:Siv cov khoom lag luam nto moo hauv tsev, peb lub thoob thoob conveyor siv tshuab conveyor saw siv lub suab loj tus kheej -lubricating roller conveyor saw. Yog li ntawd, kev sib txhuam poob ntawm cov saw hauv kev siv yog txo, kev pab cuam lub neej ntawm cov saw yog ntev, thiab kev tu thiab hloov tus nqi raug txo.

Chassis:Lub tshuab tag nrho tuaj yeem ua los ntawm carbon steel txias phaj electrostatic txau lossis stainless hlau qauv

Conveying hom:Rotary thoob conveyor thauj cov ntaub ntawv nyob rau hauv lub cev kaw, thiab thauj cov ntaub ntawv los ntawm ib tug hopper tshem tawm ntawm ib tug saw. Cov qauv tsim qauv tuaj yeem paub ntau yam kev teeb tsa thiab tuaj yeem ua ke horizontally, vertically thiab horizontally. Z-type, C-type, E-type, L-type, R-type kuj tseem tuaj yeem ua tau ntau-point noj, multi-point unloading, tag nrho lub tshuab kaw tag nrho, tsis muaj kuab paug, tsis muaj paug, huv si thiab huv si, thiab saj zawg zog muaj pes tsawg leeg, yuav siv tau nyob rau hauv ib tug me me qhov chaw Conveying yog nqa tawm vertically thiab horizontally nyob rau hauv, ua lub conveying machinery yooj yim rau nruab thiab hloov.





Cov cuab yeej no tuaj yeem siv rau hauv ntau qhov chaw uas yuav tsum tau ua tib zoo tuav. Z- hom kev pub mis, C- hom pub mis, Z-C sib xyaw pub noj thiab ntau- taw tes pub, ntau- taw tes tshem tawm thiab lwm lub sijhawm. Tam sim no, nws feem ntau yog siv rau kev pub mis ntawm qhov hnyav thiab ntim tshuab, kev pub noj thiab rov ua dua - xaiv cov xim sorting tshuab, peb - qhov ntev ntawm kev thauj khoom thiab tshem tawm cov kab ntau lawm tsis siv neeg, thiab ntau - taw tes pub noj ntawm cov tshuab tsis siv neeg qhov hnyav thiab batching systems.





Thaum Z- hom of elevator muaj ntau qhov chaw nres nkoj tawm, Z- hom of elevator paub li cas?

Raws li cov neeg siv khoom xav tau, peb muab cov neeg siv khoom nrog peb txoj kev tshem tawm rau cov neeg siv khoom xaiv:

Los ntawm txhais tes unloading, pneumatic unloading, hluav taws xob unloading.





Yog tias koj xav tau cov ntaub ntawv, video thiab cov nqi khoom ntawm Z- hom thoob of elevator, thov muab cov ntaub ntawv hauv qab no rau peb: cov ntaub ntawv loj; ua raw cov ntaub ntawv (khoom siv): npe □ lub ntiajteb txawj nqus □ ya raws □ kub □; site tej yam kev mob; cov cai tshwj xeeb.



Thov muab qhov ntev ntawm A, D thiab F hauv daim duab hauv qab no, lossis qhov ntev ntawm B, C thiab E





Qhov kev lag luam lossis cov khoom siv yog dab tsiMulti-point tso tawm Z- hom thoob of elevator haum rau?

Z- hom of elevator yog tsim rau kab rov tav - ntsug- kab rov tav conveying ntawm cov ntaub ntawv loj, feem ntau suav nrog kev xa cov khoom tsis yog- cov khoom khov xws li granules thiab hmoov. Kev lag luam dav dav, feem ntau suav nrog: kev lag luam refractory, kev lag luam yas, kev lag luam carbon activated, chemical metallurgy kev lag luam, cov ntaub ntawv hauv tsev thiab kev tiv thaiv ib puag ncig, kev lag luam chiv, tsis yog - metallic mining, thiab lwm yam.





Khoom noj khoom haus kev lag luam: biscuits, gummies, marshmallows, me me steamed buns, pancakes, nqaij qaib essence, qos yaj ywm chips, mov noodles, dumplings, txiv laum huab xeeb, melon noob, pistachios, mov, thiab lwm yam.

Kev lag luam tshuaj: yas granules, activated carbon, preservatives, additives, chiv, thiab lwm yam.

Kev lag luam kws tshuaj: tshuaj ntsiav, ntsiav tshuaj, tshuaj, thiab lwm yam.

Kev lag luam kho vajtse: screws, ceev, hlau fittings, thiab lwm yam.







1. Lub plhaw txoj hlua khi.

Kho lub handwheel ntawm lub landline thiab ceev lub hopper siv.

2. Cov kabmob yog plua plav thiab lubricated tsis zoo.

Ntxuav cov bearings thiab ntxiv roj tshiab.

3. Txoj hlua kis tau tus mob plam lossis poob, lossis cov khoom siv sib kis tsis ua haujlwm.

Tighten txoj siv tawv kom tshem tawm qhov ua txhaum ntawm cov khoom sib kis.

4. Lub hopper ntsia hlau yog xoob los yog poob, thiab lub hopper txav los yog poob. Nres rau kev soj ntsuam, nruj lub hopper screws, thiab kho lub hopper txoj hauj lwm.





1. Lub granular Z- hom thoob of elevator yog tswj hwm los ntawm tus neeg tshwj xeeb, thiab lub hwj chim hloov tau raug kuaj xyuas tsis tu ncua.
2. Txhawm rau txhim kho kev nyab xeeb ntawm kev siv, lub hoist yuav tsum tau nruab ib lub hoist limiter thiab lub limiter mus ncig. Cia lub pulley nqa mus rau qhov deb ntawm lub reel.
3. 300mm tuaj yeem ua rau lub hoist nres tau, thiab tseem tuaj yeem nqa mus sim.
4. Lub hoist yuav tsum muaj lub cim load, thiab qhov hnyav yuav tsum tsis txhob overloaded thaum nqa thiab txo.
5. Tom qab lub hoist pib xa hluav taws xob, xyuas cov kev ua hauj lwm ntawm lub hoist limiter, mus txawv tebchaws limiter thiab interlock hloov nyob rau hauv thiaj li yuav saib xyuas seb lawv zoo li qub.
6. Ua ntej nqa lossis tsaws, lub tsheb tuaj yeem tsav tau tsuas yog tom qab lub tswb nrov.
7. Kev lag luam pellet pub conveyor tsis raug tso cai nqa tib neeg nce thiab nqis.
8. Tom qab ua haujlwm tiav lawm, lub phaj dai ntawm cov khoom siv ntau- taw tes tawm Z- hom thoob of elevator yuav tsum poob rau hauv av, tom qab ntawd txiav tawm lub hwj chim, thiab kaw lub qhov rooj sab sauv thiab sab qis.
9. Ib txwm ua kom ib puag ncig ib puag ncig ntawm cov particle Multi-point paug Z- hom thoob of elevator tu cev.





Lub npe ntawm lubricating qhov	Lubricating khoom	Lubrication voj voog	Txoj kev lubrication
Cov kabmob	Dej Resistant Roj	200 teev	nrog lub lubricator
Backstop	Dej Resistant Roj	50 hnu	nrog lub lubricator
Tension Bolt	Dej Resistant Roj	500 teev	smear
Ceev reducer	Raws li qhov tshwj xeeb ntawm lub nruab reducer	6 hli	ncuav
Fais Tsav	Dej Resistant Roj	6 hli	ncuav





Ua ntej-Kev Muag Khoom:

• Qhia cov neeg siv khoom xaiv cov qauv tsim khoom siv.
• Xa cov neeg ua haujlwm engineering thiab cov kws tshaj lij mus rau qhov chaw tsim khoom hauv lub sijhawm los npaj lub xaib rau cov neeg siv khoom, tsim cov txheej txheem tsim nyog thiab kev daws teeb meem.
• Peb tuaj yeem tsim thiab tsim cov khoom raws li cov kev xav tau tshwj xeeb ntawm cov neeg siv khoom kom tau raws li cov kev xav tau sib txawv ntawm cov tub ua lag luam



Ntawm Kev Muag Khoom:

• Kev soj ntsuam nruj ntawm cov khoom ua ntej tawm hauv lub hoobkas
• Nkoj raws li daim ntawv cog lus



Tom qab-muag Service:

• Lub sijhawm lav tseem ceeb ntawm cov cuab yeej muag los ntawm peb lub tuam txhab yog ib xyoos (tshwj tsis yog qhov tsis ua haujlwm lossis kev puas tsuaj los ntawm tib neeg cov yam ntxwv, cov khoom siv roj lossis cov xwm txheej tsis zoo, thiab cov khoom tsis zoo yuav tsis them los ntawm lub warranty: roj injectors, twj tso kua mis, lub qhov muag photosensitive, thiab lwm yam).
• Yog tias cov khoom siv tsis ua haujlwm yog tshwm sim los ntawm tib neeg yam, tus nqi yuav raug them raws li lub Hoobkas nqi.
• Tom qab tau txais daim ntawv ceeb toom lav, teb tsis pub dhau 2 teev . 24 teev cov kev taw qhia kev daws teeb meem.

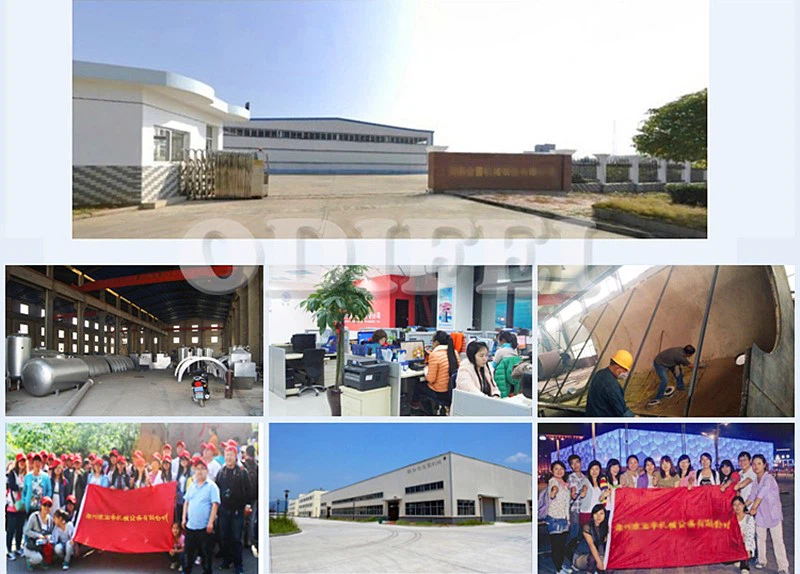

Zhengzhou Odifei Machinery Equipment Co., Ltd. tau tsom mus rau cov khoom siv conveying rau 17 xyoo. Nws lub lag luam tseem ceeb yog: kauv vibration ntsug elevator, slat feeder, saw phaj conveyor, slat conveyor, scraper conveyor, lub kaum loj siv conveyor, ntsia hlau conveyor Conveyor, saw thoob conveyor, TD siv thoob of elevator, TH nplhaib saw thoob of elevator, NE thoob ntau yam ntawm Nev elevator, thiab lwm yam. thoob elevator. TD75 siv conveyor (los yog siv conveyor), mobile conveyor, siv conveyor nrog loj inclination kaum sab xis; ntsia hlau conveyor, shaftless ntsia hlau conveyor; lub teeb, nruab nrab thiab hnyav saw phaj conveyor; saw thoob conveyor tshuab, SCD trough clinker conveyor; kab rov tav ob chav ncej tov khoom; lub teeb, nruab nrab thiab hnyav phaj feeder; GZG lub cev muaj zog vibration feeder; trommel screen, shaftless trommel npo;

Nyob rau xyoo 2010, peb lub tuam txhab R & D pab neeg tau nkag mus rau hauv kev lag luam kev lag luam, thiab tau tsim kho cov khoom pov tseg hauv tsev kho mob scaly conveyors, kev tshuaj ntsuam xyuas cov khib nyiab hauv tsev thiab kev txheeb xyuas cov ntxaij vab tshaus trommel, kev tsim cov khib nyiab slat feeders, thiab hluav taws xob arc rauv scaly scrap conveyors, uas tsis tsuas yog tsim Nws kuj tsim lub hom phiaj ntawm kev lag luam thiab cov txiaj ntsig ib puag ncig. saw hlau.

Zhengzhou Odifei Machinery Equipment Co., Ltd. tau ua tsis tu ncua kev siv technology tshiab nyob rau hauv tus ntsuj plig ntawm kev ua tau zoo, thiab tau tsim ntau yam khoom siv tshiab. Cov khoom lag luam yog qib siab hauv kev tsim, nplua hauv kev tsim khoom, txhim khu kev qha hauv kev ua tau zoo, muaj qib siab thoob ntiaj teb, muag zoo hauv tsev thiab txawv teb chaws, thiab lub hom phiaj ua tus thawj coj hauv kev lag luam!







Q: Cov thoob elevator yog tsim los ntawm qee yam khoom

A: Hopper: tsau rau ntawm daim kab xev (los yog traction saw), muaj peb yam

Lub thoob tob - haum rau cov ntaub ntawv xoob;

Cov thoob khib nyiab - cov ntaub ntawv uas muaj viscosity siab;

Daim duab peb sab thoob - hnyav thiab lumpy khoom

Plhaub: Ua - hauv kev sib kis thiab nres.

Lub cev: Cov phaj hlau nyias yog welded rau hauv lub plhaub square, thiab lub installation yog deviated.

Hauv qab: Nruab tensioning ntaus ntawv.



Q: Muaj ntau hom thoob elevator

A: 1. Raws li daim ntawv layout: nws tuaj yeem muab faib ua hom ntsug thiab hom inclined

2. Raws li kev sib txawv ntawm kev tso tawm: nws tuaj yeem muab faib ua centrifugal, lub ntiajteb txawj nqus thiab hybrid.

3. Raws li kev them nyiaj sib txawv: nws tuaj yeem muab faib ua hom kev khawb thiab txhaj tshuaj.

4. Raws li cov qauv ntawm lub hopper: nws tuaj yeem muab faib ua lub thoob ntiav, lub thoob sib sib zog nqus thiab peb lub thoob.

5. Raws li cov khoom sib txawv traction: nws tuaj yeem muab faib ua cov kab xev thiab cov hlua hlau.



Q: Lub hauv paus ntsiab lus ua haujlwm ntawm lub thoob of elevator yog dab tsi

A: Lub hauv paus ntsiab lus ntawm kev ua haujlwm ntawm lub thoob elevator yog raws li hauv qab no: lub hopper rub cov khoom los ntawm qhov chaw cia hauv qab no, nqa nws mus rau sab saum toj nrog rau txoj siv conveyor lossis saw, tig rov qab tom qab hla lub log sab saum toj, thiab lub thoob elevator dumps cov khoom rau hauv qhov lees txais. Kev tsav tsheb ntawm txoj siv- tsav lub thoob of elevator feem ntau siv cov roj hmab siv, uas tau nruab rau ntawm lub nruas tsav tsheb qis los yog sab sauv thiab sab saud thiab qis dua redirecting nruas. Cov saw hlau- tsav thoob lub elevator feem ntau yog nruab nrog ob qhov sib txuas sib txuas sib txuas, nrog ib khub ntawm kev sib kis sprockets nyob rau sab saum toj lossis hauv qab, thiab ib khub ntawm redirecting sprockets nyob rau hauv qab lossis sab saum toj. Cov thoob elevator feem ntau yog nruab nrog cov casings los tiv thaiv cov plua plav ya hauv lub thoob elevator.



Q: Dab tsi yog qhov zoo thiab qhov tsis zoo ntawm lub thoob of elevator?

A: Qhov zoo:

1. Cov qauv yooj yim, qhov loj me me, thiab qhov chaw hauv pem teb yog me me.

2. Lub lifting qhov siab yog loj, lub peev xwm conveying yog zoo, lub cev yog tag nrho nyob rau hauv, thiab ib puag ncig muaj kuab paug yog me me.

3. Kev siv hluav taws xob tsawg.

Qhov tsis txaus:

1. Nws yog ib qho yooj yim los thaiv thaum overloaded, thiab lub hopper yog ib qho yooj yim rau hnav.

2. Nws tsuas yog tsim nyog rau kev xa cov hmoov, granular thiab me me thiab nruab nrab - cov khoom loj loj, xws li nplej, thee, xuab zeb, thiab lwm yam.

3. Cov khoom tsis tuaj yeem thauj mus rau hauv txoj kab rov tav.



Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam? Thaum tsim ibMulti-point tso tawm Z- hom thoob of elevator, Dab tsi lwm cov ntaub ntawv yog thoob elevator haum rau?

A: Peb yog lub Hoobkas, tsim nyob rau xyoo 2007, tshwj xeeb hauv kev tsim cov ntsug vibration hoists, ntsug vibration of elevator, thoob elevator, siv conveyors, nplai conveyors, ntsia hlau conveyors, thiab lwm yam. Lub thoob elevator tuaj yeem siv rau hauv kev lag luam chemical, ceramic, kev lag luam khoom noj khoom haus, metallurgical kev lag luam, thiab lwm yam.



Q: Yuav ua li cas txog cov khoom seem?

A: Peb ib txwm muab cov khoom seem ntawm tus nqi thiab muab cov npe ntawm cov khoom seem rau koj thaum koj yuav lub tshuab.



Q: Koj puas yuav sim Multi-point tso tawm Z- hom thoob of elevator ua ntej xa khoom?

A: Yog lawm, peb yuav sim txhua lub tshuab thiab cov kab ntau lawm ua ntej xa khoom, thiab xa cov yeeb yaj kiab ua haujlwm rau koj. Koj tuaj yeem tshawb xyuas nrog peb ua ntej xa khoom.











Chassis: stainless hlau chassis / carbon hlau txau chassis

Hopper: zaub mov qib ABS hopper / stainless hlau hopper / carbon steel hopper

Chain: alloy steel saw / stainless hlau saw

Sprocket: Alloy Steel Sprocket / Stainless Hlau Sprocket

Tsav: zoo tib yam lub cev muaj zog / tawg- pov thawj lub cev muaj zog / lub cev muaj zog sib txawv

Control: Phau ntawv / Tsis siv neeg (tuaj yeem kho raws li cov neeg siv khoom xav tau)

Z- hom thoob of elevator yog ib hom tshiab ntawm cov khoom siv thauj khoom uas tau ua tiav tiav los ntawm kev sib koom ua ke cov thev naus laus zis hauv kev lag luam. Txij li thaum Z- hom hoist tau muab tso rau hauv kev ua lag luam, nws tuaj yeem hloov kho sai sai rau cov kev xav tau ntawm kev tsim khoom, thiab ntau cov khoom lag luam tau ua tiav hauv ib puag ncig engineering machinery, metallurgy, tshuaj lom neeg kev lag luam, chiv thiab lwm yam lag luam.





Vim tias Z- hom hoist yog cov khoom siv tshuab, nws muaj qee qhov kev tshaj lij, yog li nws yuav tsum tau hais ua ntej hais.

Txhawm rau sib txuas lus nrog cov neeg siv khoom, cov ntaub ntawv hauv qab no:

1. Cov khoom siv dab tsi yog tus neeg siv khoom xa khoom?

2. Dab tsi yog qhov tshwj xeeb lub ntiajteb txawj nqus ntawm cov khoom?

3. Dab tsi yog qhov kev ncua deb ntawm kab rov tav thiab qis kab rov tav? Dab tsi yog qhov siab conveying?

4. Dab tsi yog qhov khoom xa tuaj ntim ib teev?

5. Lwm yam, xws li: cov khoom siv noo noo, khoom siv, thiab lwm yam.



Thov muab qhov ntev ntawm A, D thiab F hauv daim duab hauv qab no, lossis qhov ntev ntawm B, C thiab E





Yog tias koj txaus siab rau Multi-point tso tawm Z- hom thoob of elevator, thov koj xav tiv tauj peb hauv 24 teev!

Txais tos koj tuaj xyuas peb lub Hoobkas !!!
