Chevron Siv Conveyor
Chevron Belt Conveyor yog ib txoj siv conveyor tshwj xeeb uas tsim los xa cov ntaub ntawv ntau ntawm cov kaum sab xis (feem ntau tshaj 20 degree, mus txog 60 degree, lossis siab dua).
Txoj haujlwm ua haujlwm ntawm chevron siv conveyor
Lub hauv paus ntawm Chevron Belt Conveyor nyob rau hauv qhov tseeb hais tias lub conveyor siv nto tsis tiaj tus tab sis yog molded los yog vulcanized nrog nruam transverse baffles. Cov baffles no zoo li "V" lossis "H" (Chevron qauv). Cov baffles (sidewalls) feem ntau yog siv ua ke nrog cov longitudinal sidewalls ntawm ntug ntawm txoj siv conveyor los ua haujlwm ua ke.
Nta
1. Nws muaj qhov zoo ntawm qhov ntev conveying nrug, muaj peev xwm loj, nruam conveying, thiab lwm yam.
2. Txhim khu kev ua haujlwm
3. Nws yog ib qho yooj yim kom paub automation thiab centralized tswj, tshwj xeeb tshaj yog rau high - tawm los thiab siab - mines efficiency. Siv conveyors tau dhau los ua cov cuab yeej tseem ceeb rau thee mining mechatronics technology.
4. Lub zog siv ntawm txoj siv conveyor yog tsawg. Txij li yuav luag tsis muaj kev sib txheeb ntawm cov khoom siv thiab cov khoom siv conveyor, tsis yog tsuas yog kev khiav hauj lwm me me (kwv yees li 1/3-1/5 ntawm scraper conveyor)
5. Txo cov nqi tsim khoom: Kev hnav thiab tsim kua muag ntawm cov khoom thauj me me, thiab cov khoom tsim tau siab.
6. Lub conveyor kab ntawm txoj siv conveyor muaj zog adaptability thiab yooj. Qhov ntev ntawm txoj kab nyob ntawm qhov xav tau. Nws tuaj yeem luv li ob peb meters thiab ntev li ntau tshaj 10 km.
7. Tau txais ib lossis ntau cov ntsiab lus. Nws tseem tuaj yeem tso tawm mus rau ntau lub ntsiab lus lossis ntu.
Technical Parameters
|
Sectional form |
Siv ceev (m / s) |
Band dav B (mm) |
|||||
|
500 |
650 |
800 |
1000 |
1200 |
1400 |
||
|
conveying muaj peev xwm G (t / h) |
|||||||
|
Grooved siv |
0.8 |
78 |
131 |
|
|
|
|
|
1.0 |
97 |
169 |
278 |
435 |
655 |
891 |
|
|
1.25 |
122 |
206 |
348 |
544 |
819 |
1115 |
|
|
1.6 |
156 |
264 |
445 |
696 |
1048 |
1427 |
|
|
2.0 |
191 |
323 |
546 |
853 |
1284 |
1748 |
|
|
2.5 |
232 |
391 |
661 |
1033 |
1556 |
2118 |
|
|
3.15 |
|
|
824 |
1233 |
1858 |
2528 |
|
|
4.0 |
|
|
|
|
2202 |
2996 |
|
|
Txoj siv sia |
0.8 |
41 |
67 |
118 |
|
|
|
|
1.0 |
52 |
88 |
147 |
230 |
345 |
469 |
|
|
1.25 |
66 |
110 |
184 |
288 |
432 |
588 |
|
|
1.6 |
84 |
142 |
236 |
368 |
553 |
756 |
|
|
2.0 |
103 |
174 |
289 |
451 |
677 |
922 |
|
|
2.5 |
125 |
211 |
350 |
546 |
821 |
111 |
|

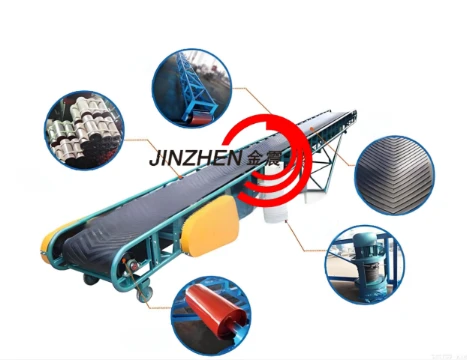

Cov ntsiab lus ntawm lub tshuab
Chevron Belt: Cov ntsiab lus tseem ceeb, muaj cov txheej txheem tsis tu ncua herringbone roj hmab septa ntawm nws qhov chaw.
Tsav Tsheb: Lub cev muaj zog, reducer, thiab lwm yam, muab lub zog.
Rollers: Lub taub hau pulley, tail pulley, thiab lwm yam.
Idler Rollers: Feem ntau, trough-shaped idlers yog siv rau kev txhawb nqa thiab tsim cov khoom thauj -cov kabmob hla- ntu.
Tensioning Device: Xyuas kom txaus txoj siv tawv nruj.
Ncej: Txhawb tag nrho cov kab ke.
Cov kev lag luam lossis cov khoom siv twg yog chevron siv conveyor haum rau?
Chevron Belt Conveyors yog tsim rau cov ntawv thov uas xav tau qhov chaw txuag, nqa qhov siab siab, thiab qhov siab siab, xws li:
nqa ore lossis thee los ntawm hauv av lossis qis - thaj chaw pw rau saum npoo lossis siab - thaj chaw pw; conveying xuab zeb los yog gravel; conveying limestone los yog clinker; nqa nplej los yog taum; loading thiab unloading bulk cargo; thiab conveying ntau yam granular lossis lumpy raw khoom.

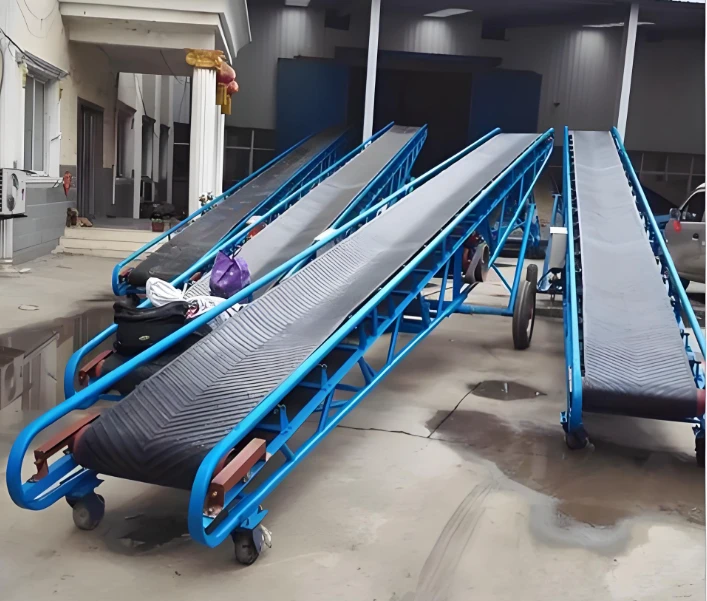

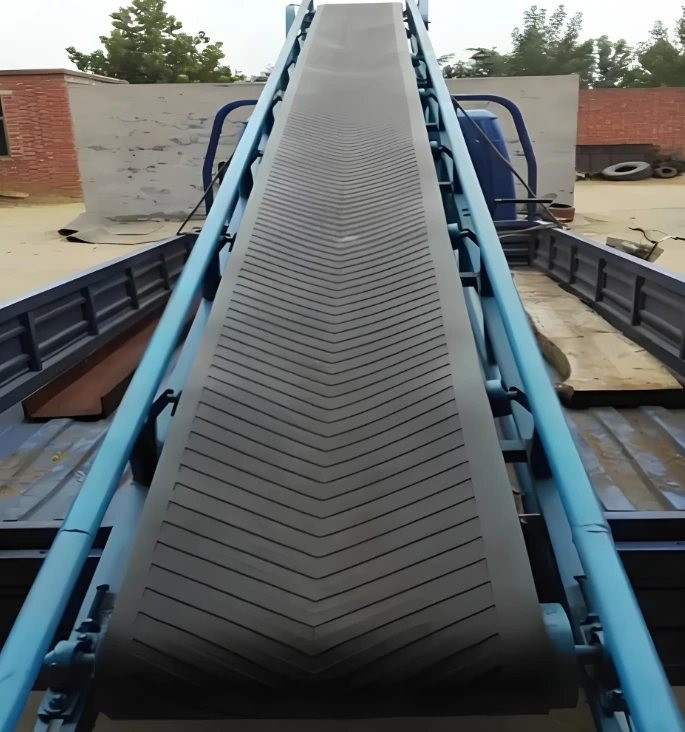

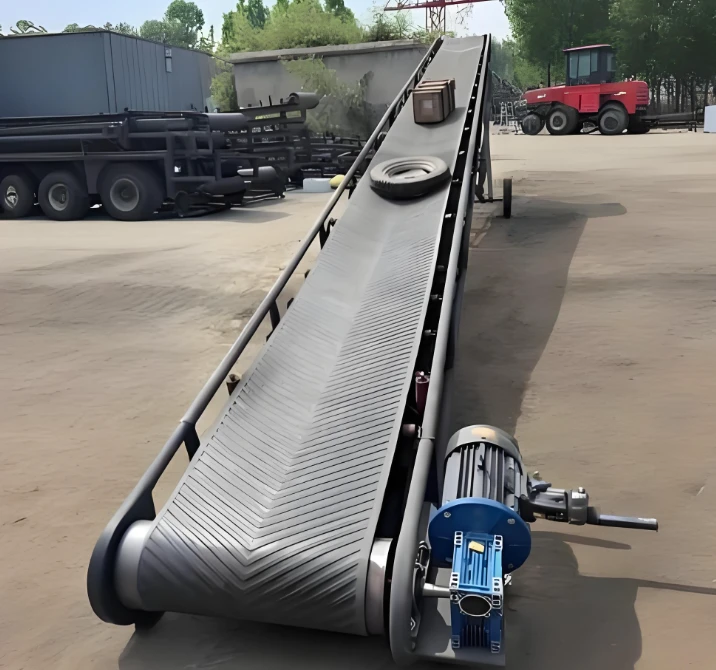

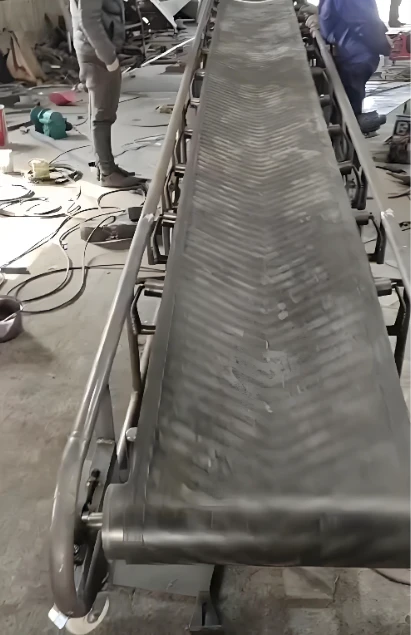

Daim duab ntawm Chevron Belt Conveyor
